Remove all parallel edges between two vertex except the one with least weight. Z D B C A.

Finding The Shortest Path With A Little Help From Dijkstra By Vaidehi Joshi Basecs Medium

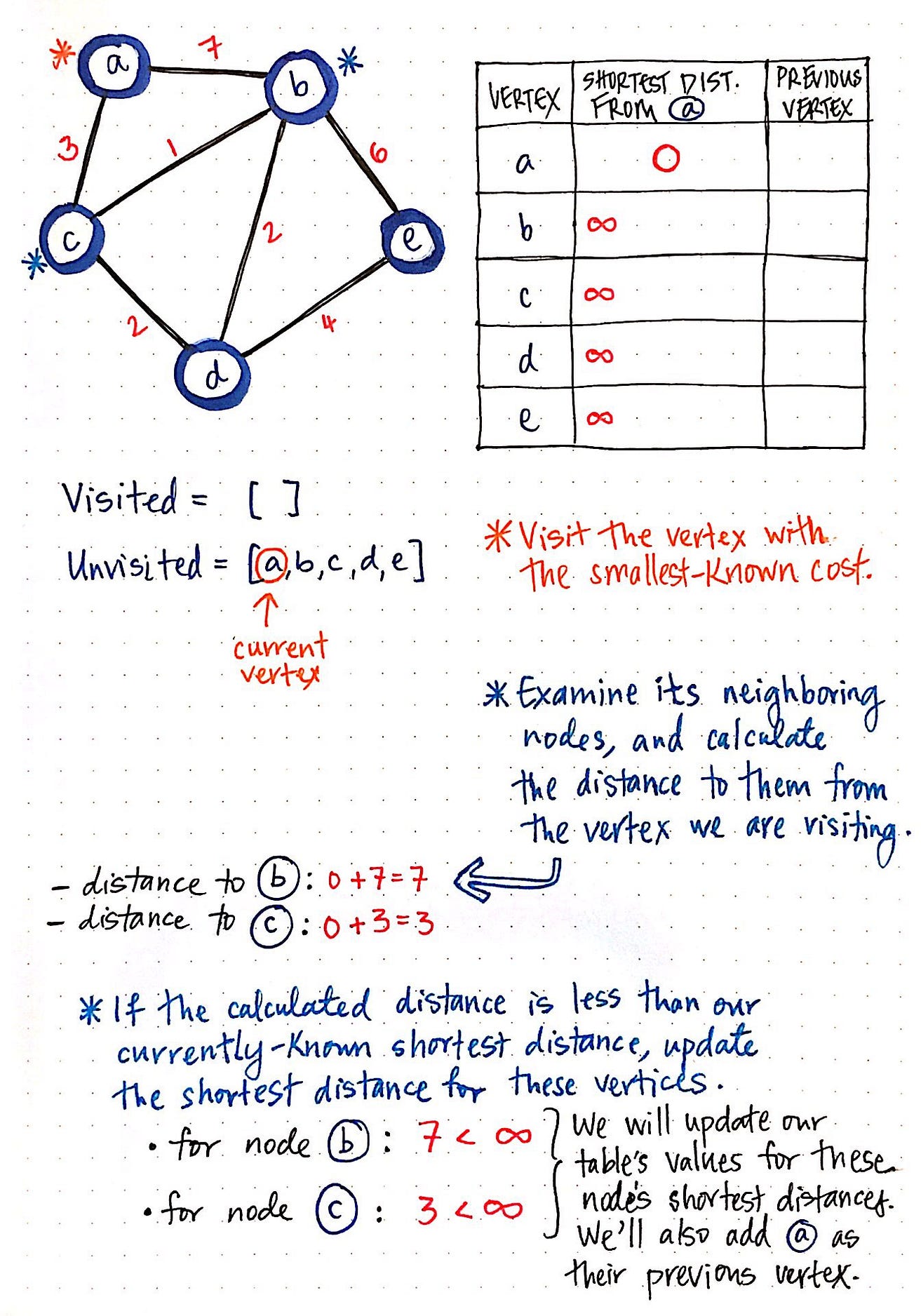

In the node column list all of the nodes starting with the start node labelled node A in this example In the cost column write an infinity symbol for each node.

Dijkstra's algorithm calculator step by step. Nodes 2 3and 6 can be reached from the current node 1. In this video we will learn to find the shortest path between two vertices using Dijkstras AlgorithmTutorial. When Does Dijkstras Algorithm Fail.

In the previous column write none for each node. A C B D Z with a length of 14. Final result of shortest-path tree Question.

This implementation shows the step-by-step progress of the. So the Shortest Path is. Distance to source vertex is zero set all other distance to infinity Sthe set of visited vertices is initially empty Qthe queue initially contain all vertices while the queue is not empty select the element of Q with the mindistance add u to list of visited vertices if new shortest path found set new value of shortest path if desiredadd traceback code.

Initially this set is empty. Algorithm 1 Create a set sptSet shortest path tree set that keeps track of vertices included in the shortest-path tree ie whose minimum distance from the source is calculated and finalized. Dijkstras algorithm only works with the graph that possesses positive weights.

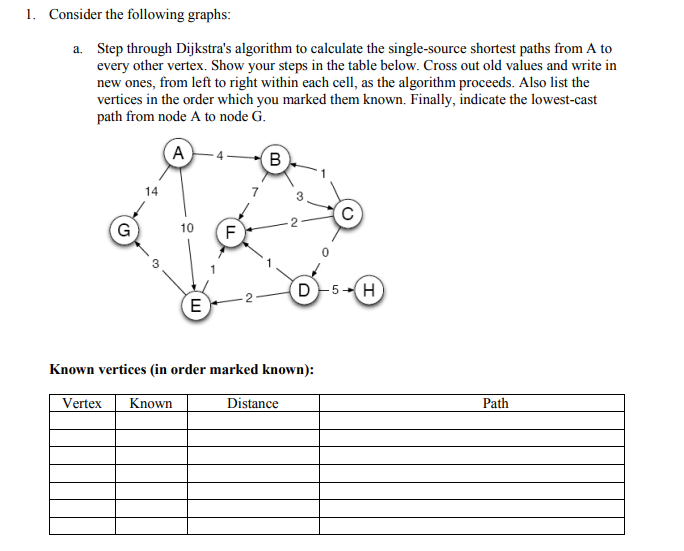

Pick first node and calculate distances to adjacent nodes. Apply the steps of the Dijkstras Algorithm to find the shortest path from A to Z using the following graph. 2 Assign a distance value to all vertices in the input graph.

Pick next node with minimal distance. If there are non-visited nodes go to step 2. 1 Create a set sptSet shortest path tree set that keeps track of vertices included in shortest path tree ie whose minimum distance from source is calculated and finalized.

In this graph vertex A and C are connected by two parallel edges having weight 10 and 12 respectively. Mark all nodes unvisited. Loops are marked in the image given below.

Read the path from Z to A using the previous node column. Dijkstras Shortest Path Algorithm. Below are the detailed steps used in Dijkstras algorithm to find the shortest path from a single source vertex to all other vertices in the given graph.

Dijkstras algorithm will initially start with infinite distances and will try to improve them step by step. Can step down transformers malfunction in such a way that they become live. Assign to every node a tentative distance value.

Any edge that starts and ends at the same vertex is a loop. Update distance values for these nodes. The algorithm works by building a set of nodes that have a minimum distance from the source.

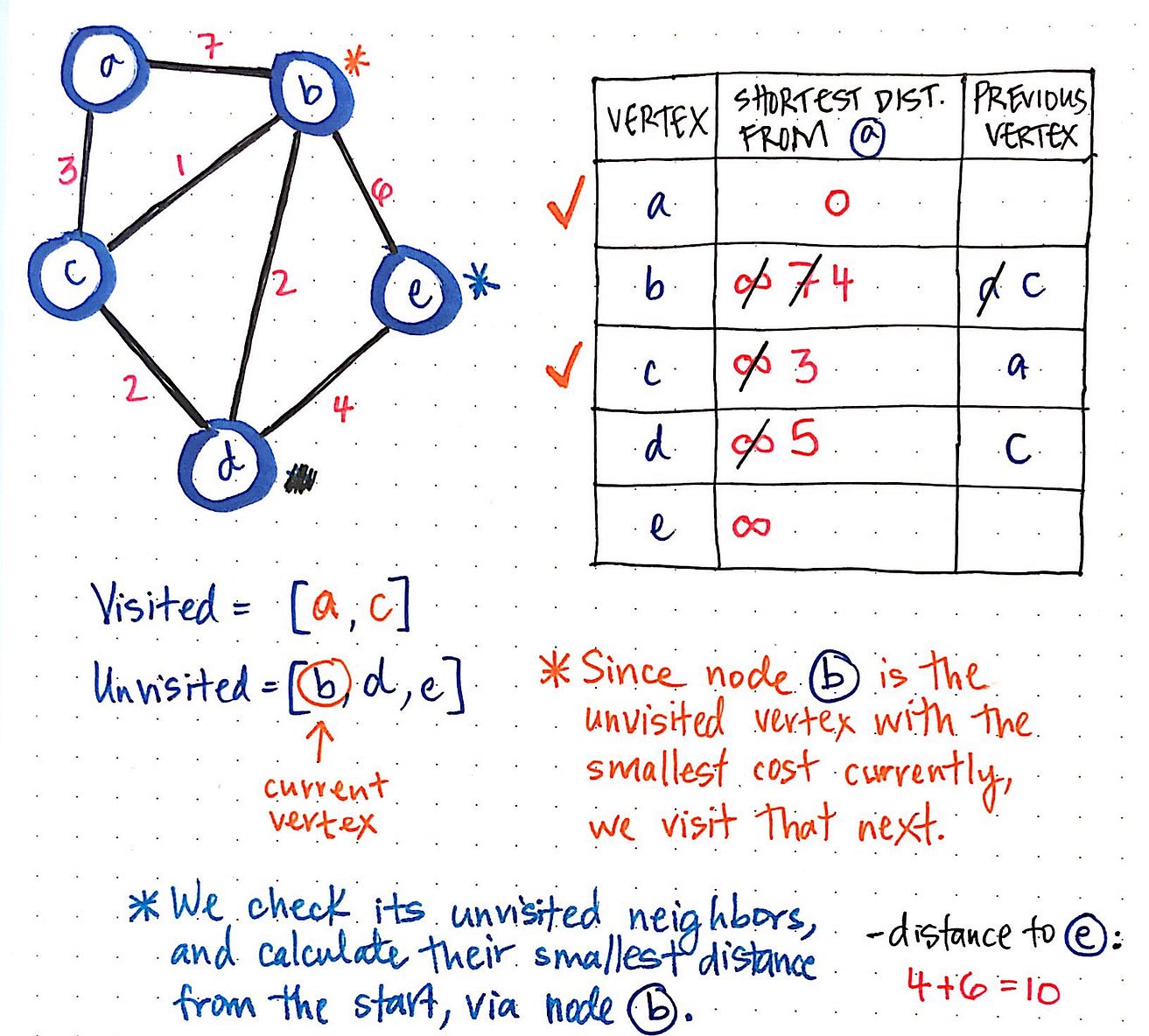

Using a fan while riding indoors if my main goal is weight loss. D2 min0 7 7 d3 min0 9 9 d6 min0 14 14 Now among the nodes 2 3 and 6 node 2 has the smallest distance value. Economics term for those who benefit even though they didnt contribute.

Graph 1 Graph 2. Repeat adjacent node distance calculations. Add the current distance of C with the weight of the edge connecting C - N.

There is no cost for A as this is where you start from. Def dijkstra_algorithmgraph start_node. Step by Step Dijkstras Shortest Path Algorithm is a well known solution to the Shortest Paths problem which consists in finding the shortest path in terms of arc weights from an initial vertex r to each other vertex in a directed weighted graph with nonnegative weights.

While Draw vertexis selected click anywhere in the canvas to create a vertex. Mark the current node C as visited. Initialize all distance values as INFINITE.

Set the cost of the start node A to 0 0. Unvisited_nodes listgraphget_nodes Well use this dict to save the cost of visiting each node and update it as we move along the graph shortest_path Well use this dict to save the shortest known path to a node found so far previous_nodes Well use max_value to initialize the infinity value of the unvisited. Thanks for subscribing---This video is about Dijkstras shortest path algorithmIn the video the following concepts are explained- Generally what the algor.

Create a set of all the unvisited nodes called the unvisited set. If its smaller than the current distance of N set it as the new current distance of N. Initialize distances according to the algorithm.

To change the cost or vertex label click on the cost or the label while Set cost or labelradio button is selected. For each neighbour N of your current node C. Here Dijkstras algorithm uses a greedy approach to solve the problem and find the best solution.

We step through Dijkstras algorithm on the graph used in the algorithm above. To draw an edge between two vertices select the Draw edgeradio button then click on the vertices you want to connect.
